In any high-performance building, both the energy and occupant comfort impacts of the glazing must be carefully assessed. For a building seeking any of the PHI or Phius certifications, a very stringent evaluation and quantification of this thermal comfort impact must be executed. This comfort evaluation looks at both the overall occupant comfort as a result of air-temperature and relative-humidity but also the localized thermal discomfort caused by cold-surfaces and drafts at the glazing surface.

In particular, the localized discomfort which results from a radiant temperature asymmetry (a difference in the temperature of the surfaces surrounding the body) must be assessed in order to evaluate the possibility of eliminating perimeter heating. If the radiant temperature asymmetry exceeds a certain level, a compensating heat source may be required in order to offset the potential discomfort. Typically, this would mean a radiator of some form, installed beneath the window.

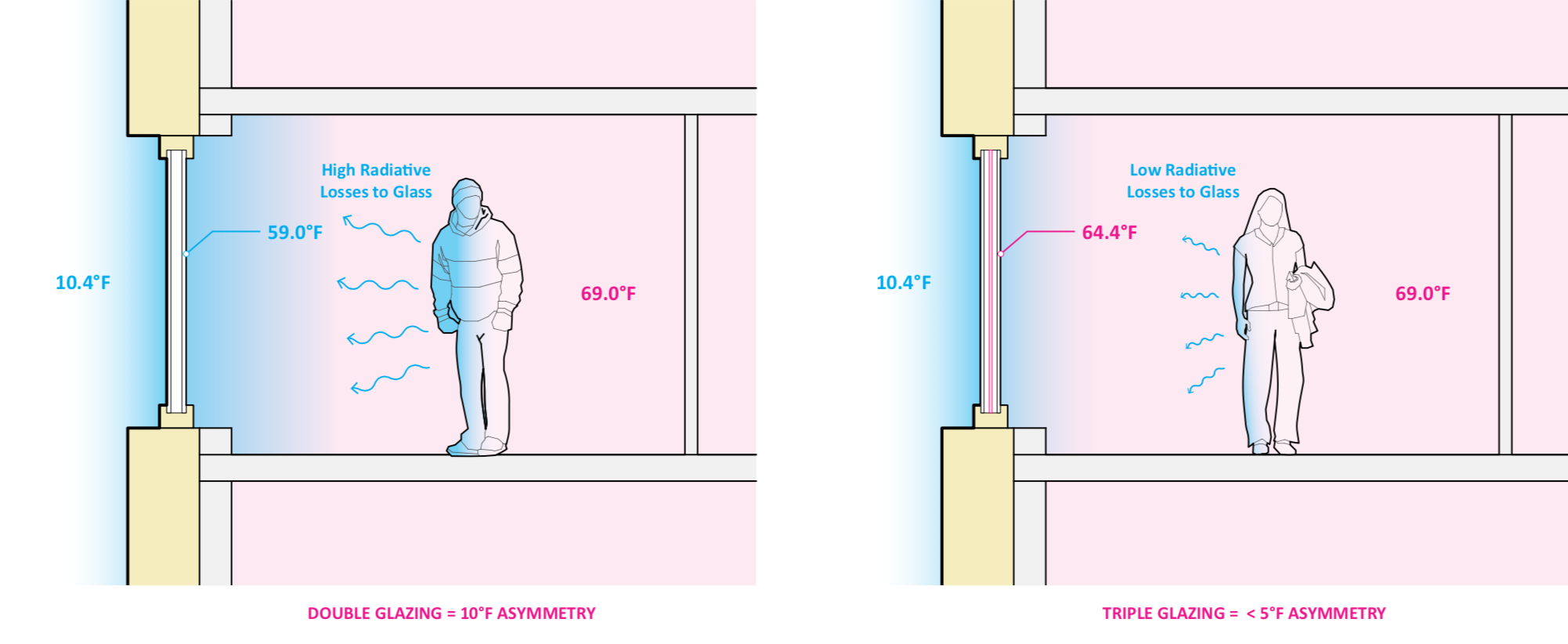

Many engineering reference standards suggest that ideal thermal comfort is found when there are temperature differences of less than 7.6°F [4.2°K] between all the surfaces around a person’s body. The windows are important in this respect, as this is where the coldest surface temperatures in the building will typically occur during the winter months.

For Zone 4(A)’s winter comfort-design weather conditions [ 10.4°F (-12.0°C) ], Passive House certification guidelines for this climate would recommend that as long as windows with an Installed R-Value higher than 5.6 hr-ft2-F/Btu [ U-Value less than 0.18 Btu/hr-ft2-F ] are used this will lead to surface temperatures which PHI finds acceptable for thermal comfort. Note, for smaller windows with a lower ‘view-factor’ (less visible to the occupants) slightly lower R-Values may still achieve the desired thermal comfort targets.

The energy balance of the windows is critical on any high-performance building project. The goal for this climate should be to take some advantage of wintertime solar gains in order to reduce overall heating energy need, while being extremely cautious about the potential for overheating and increasing cooling energy need. This can be particularly challenging with highly glazed rooms or spaces that feature large amounts of south- or west-facing glass.

All radiation values presented consider the local shading context. Where relevant, this context is created using satellite images from Google Maps and plot lines from OpenStreetMap and CadMapper. The site shading and orientation includes the following:

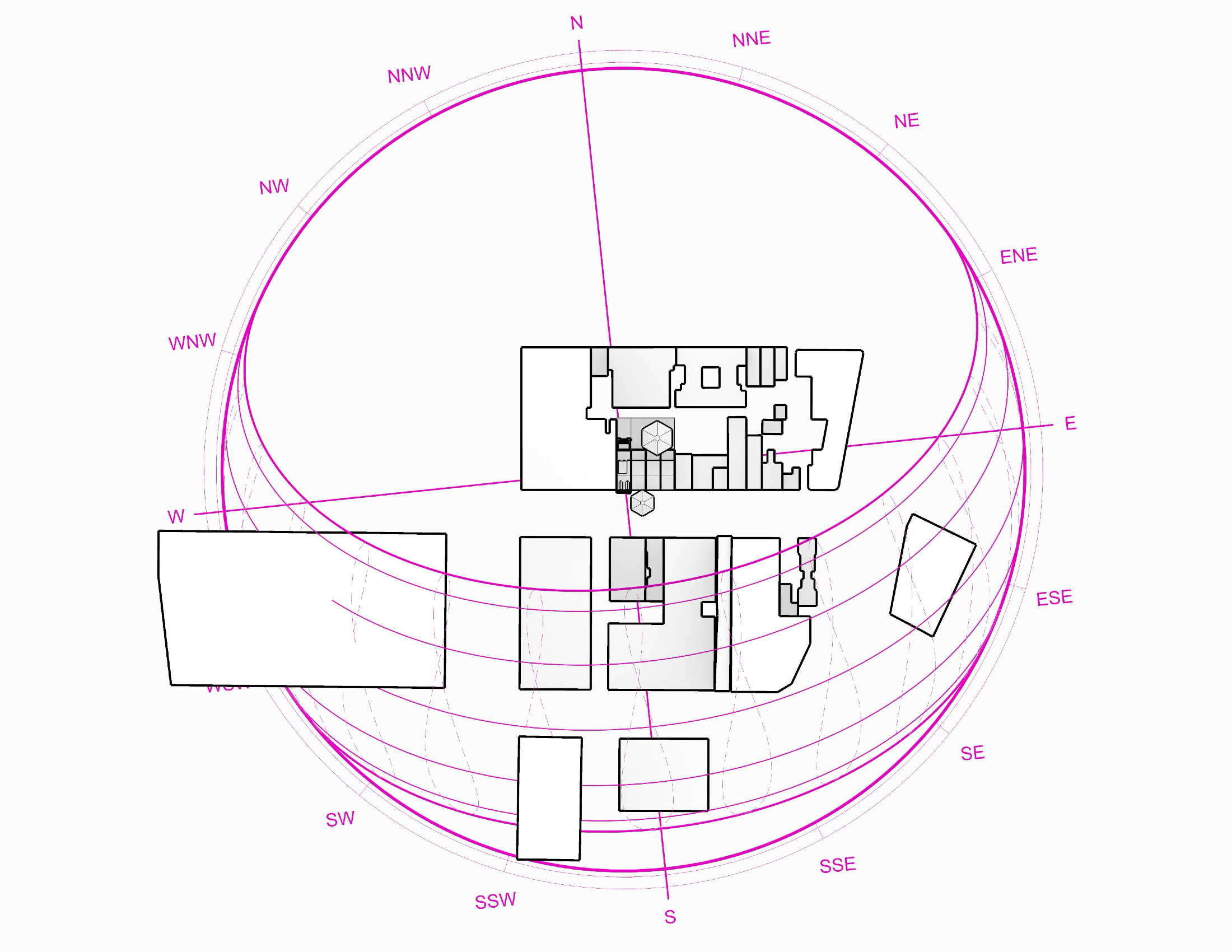

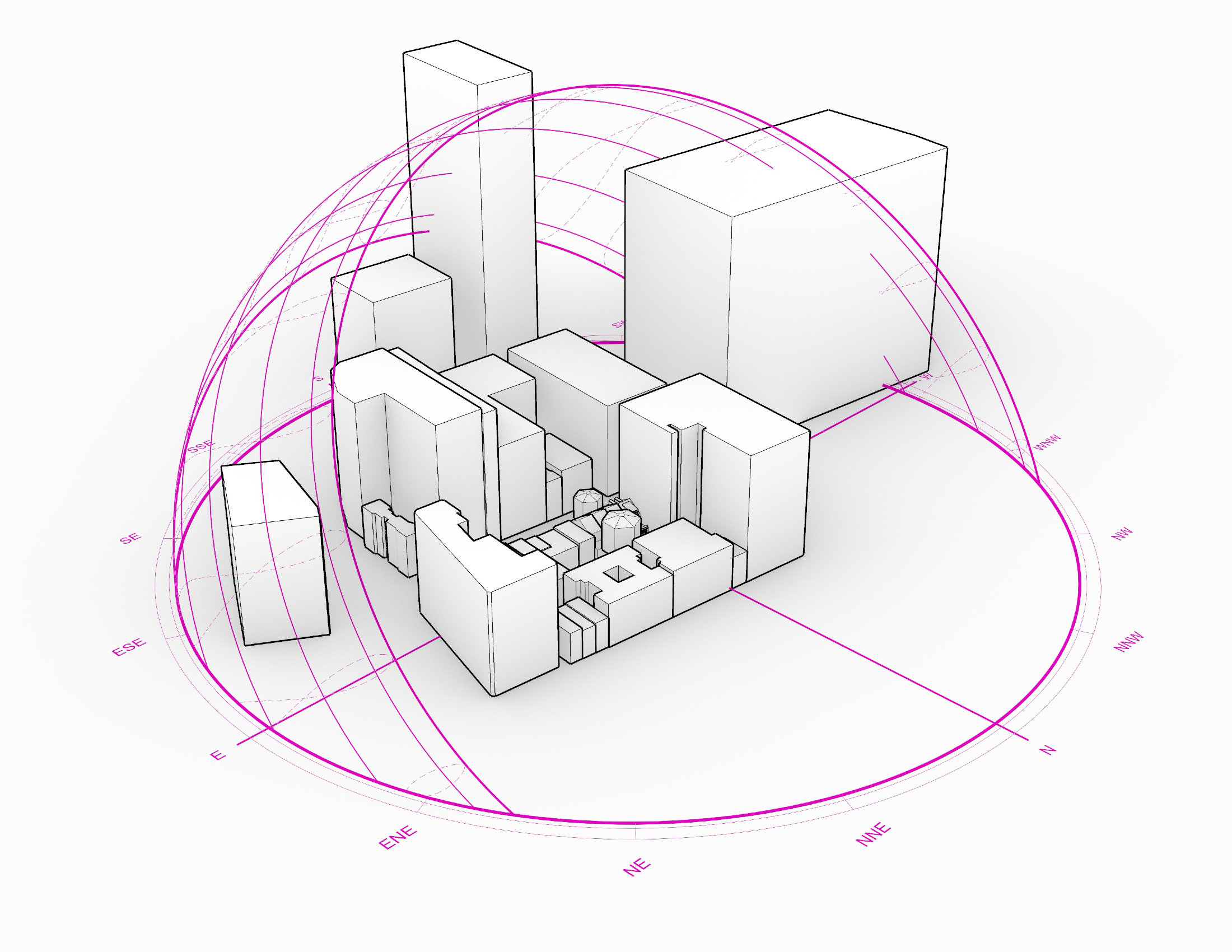

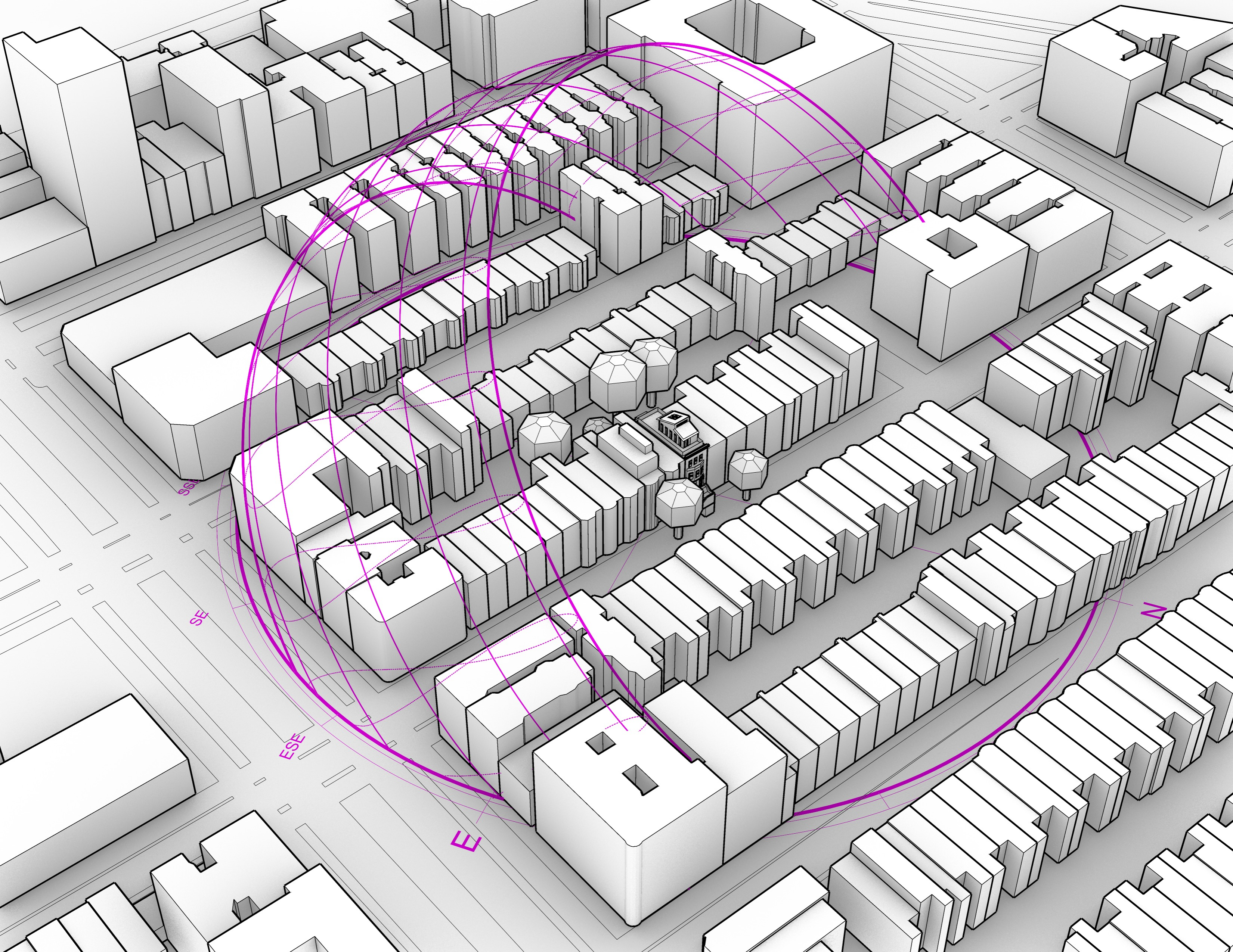

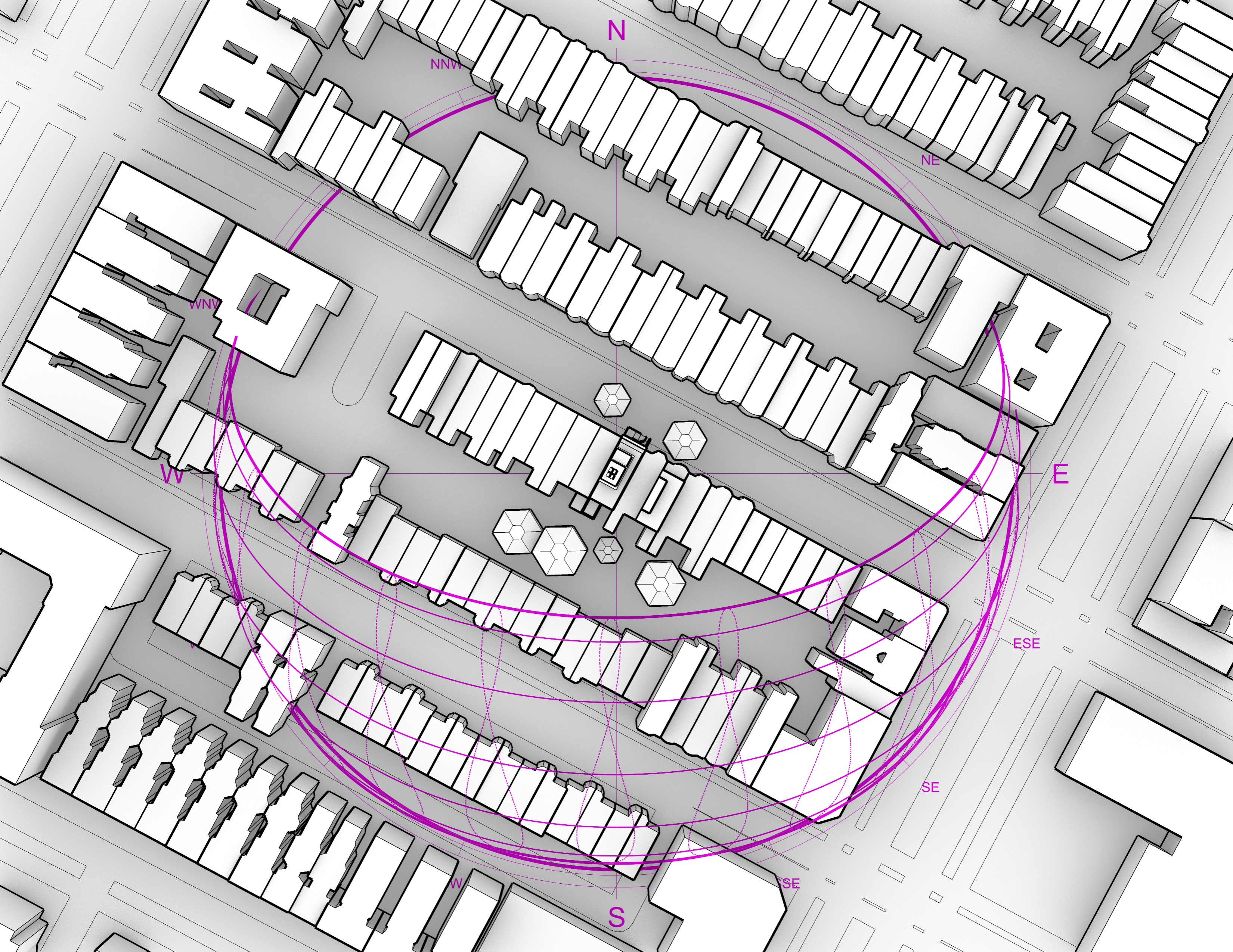

Orientation / Sun-Path Diagrams:

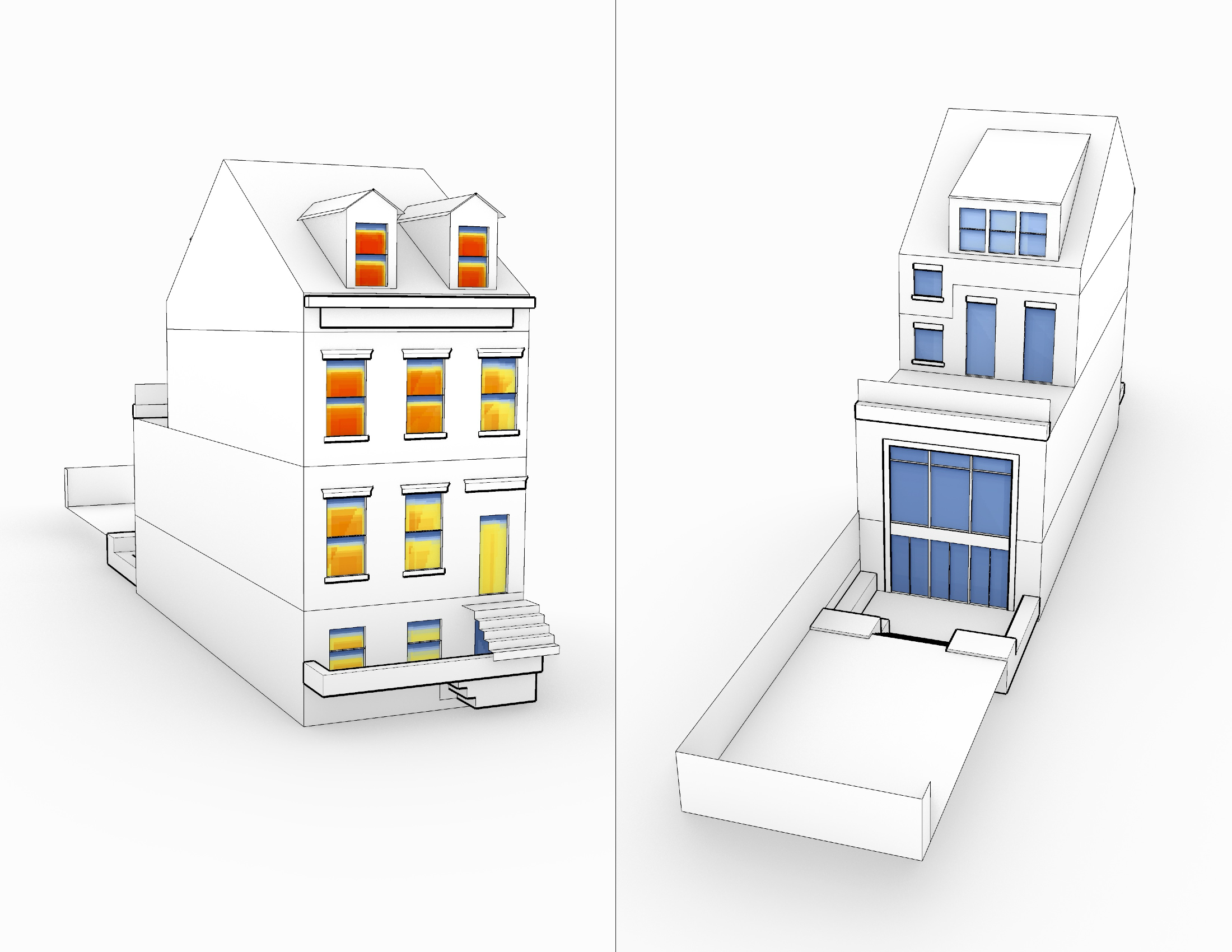

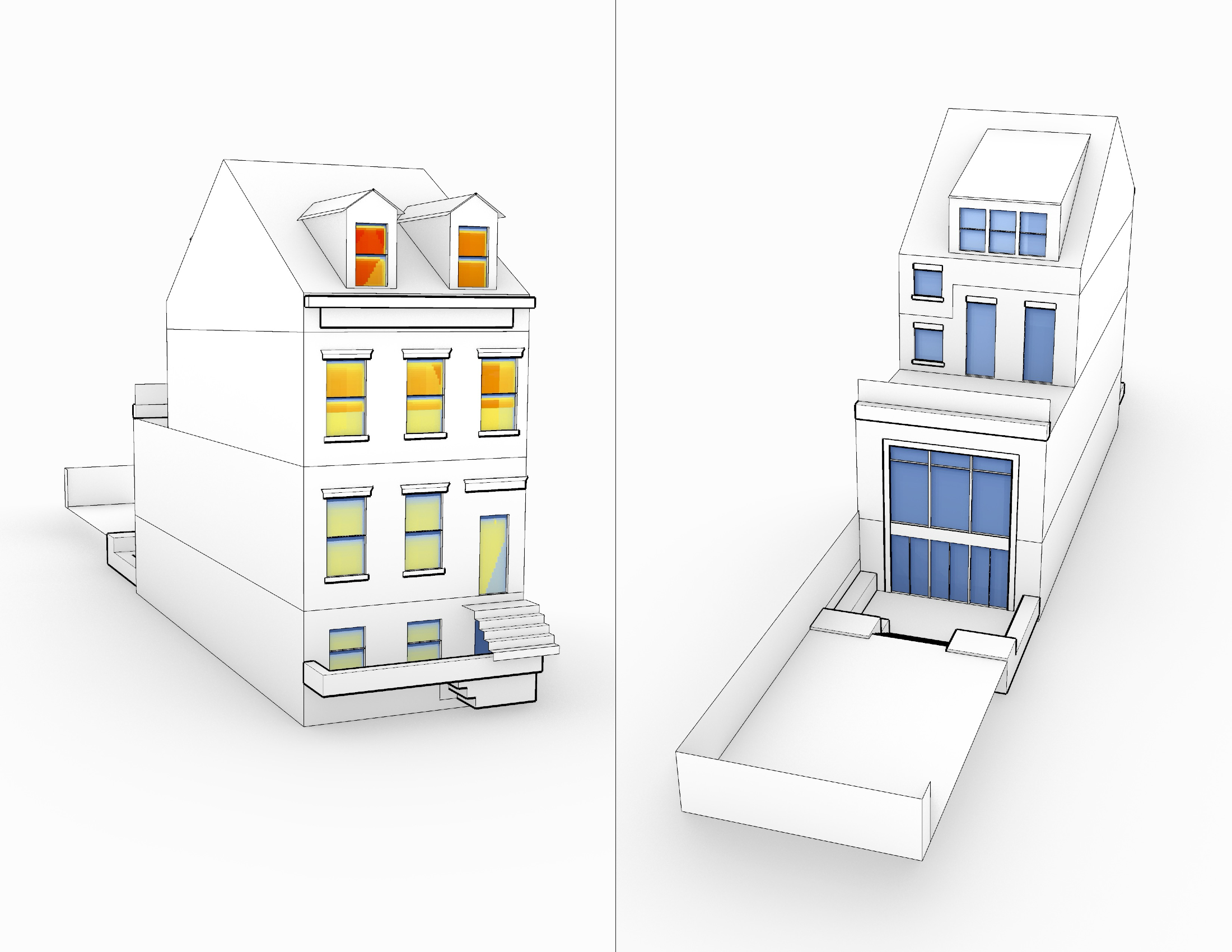

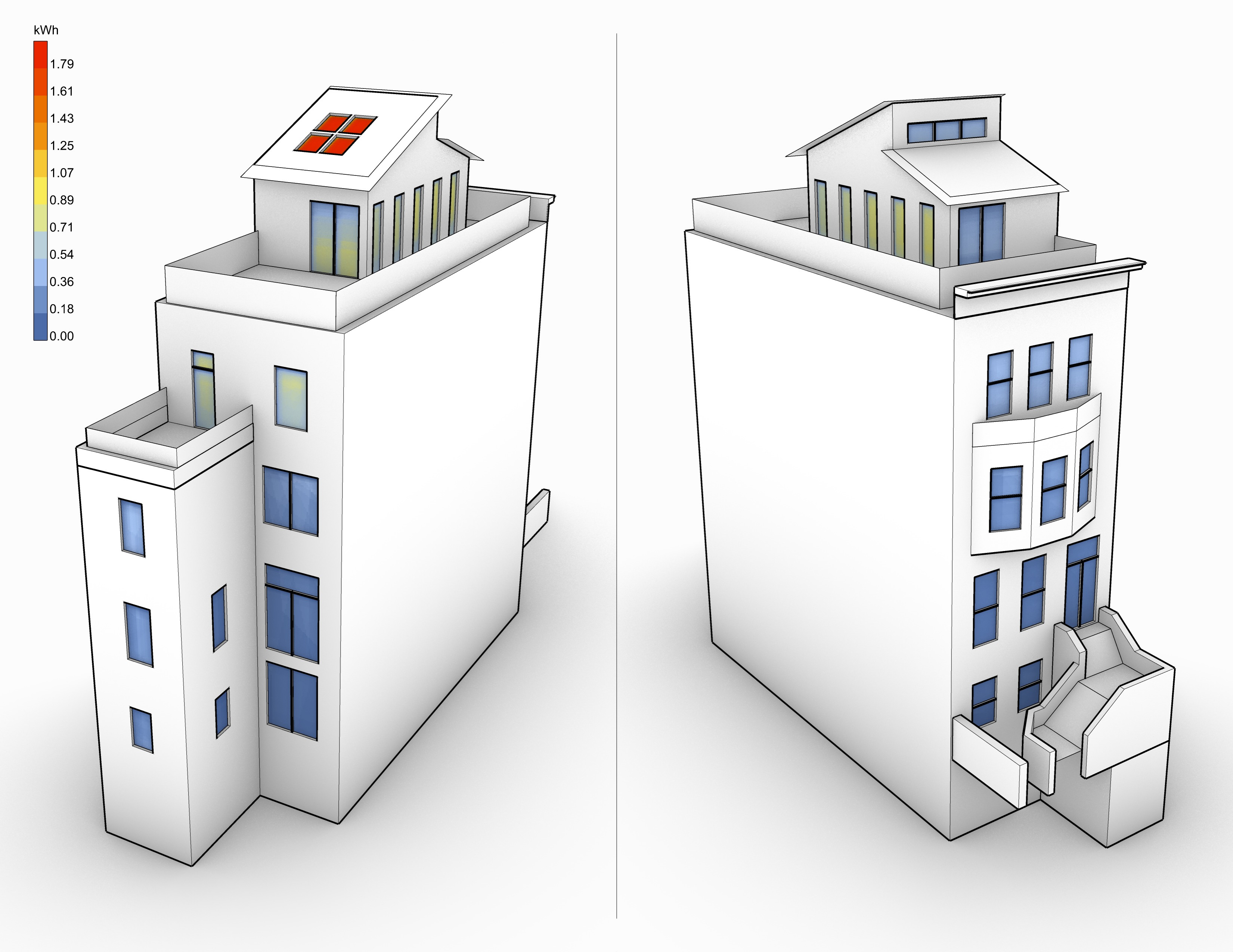

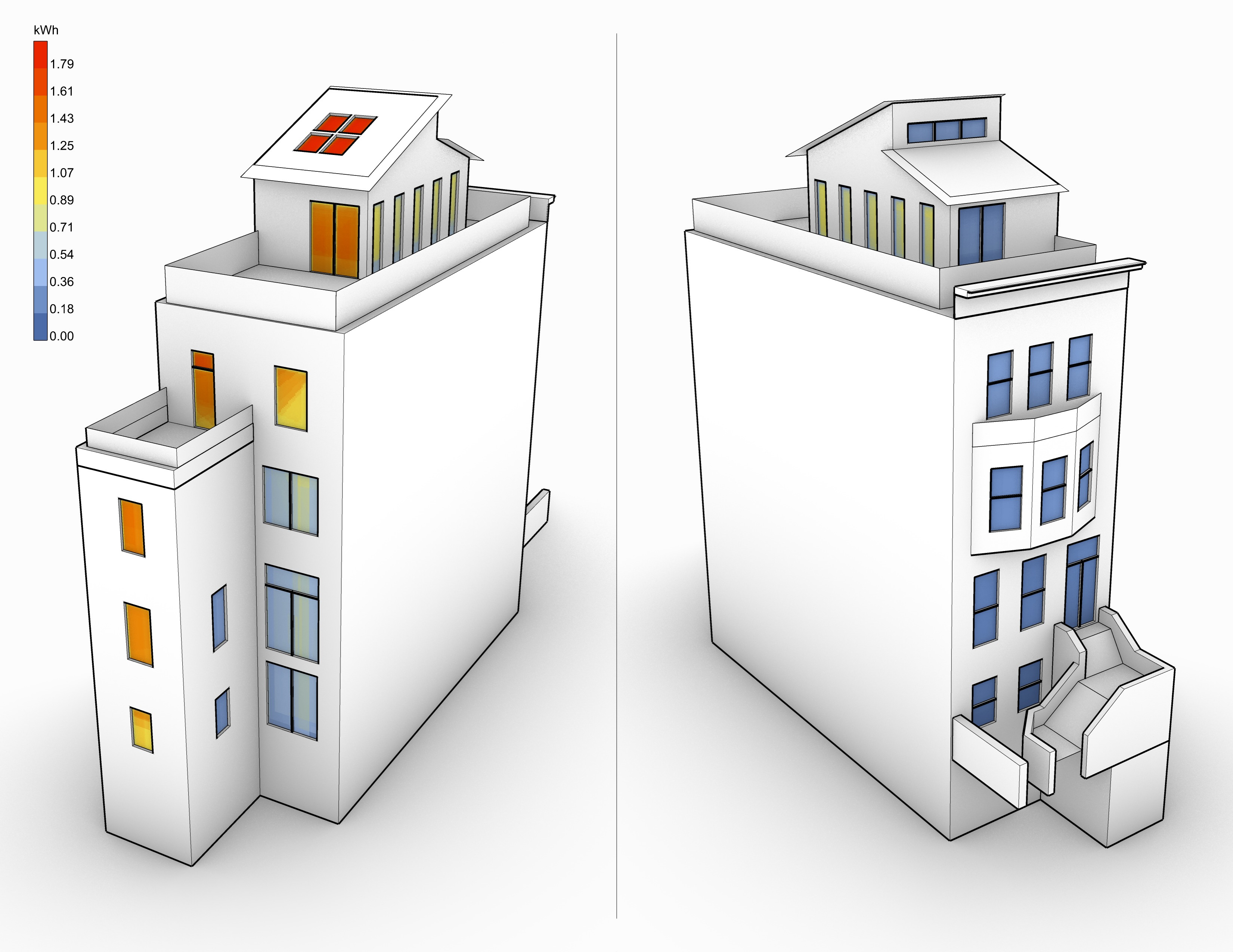

Taking into account the climate, orientation, and shading, in the results below we have assessed the average seasonal (winter / summer) solar radiation falling upon the windows in the project. The radiation levels will vary by orientation and as can be observed, shading obstructions also have a strong effect on the final level of solar radiation any individual window receives.

• Very good solar radiation is observed along the south facade which will help to reduce the wintertime heating energy need significantly.
• Very limited solar gain observed on all north side glazing. Given the large amount of glazing and the limited solar radiation, any small reduction in north-side glazing area (5% - 10%) would benefit the overall energy balance of the home. Given the historic nature of this front facade, we realize that this change may be impossible in this case however.
• While the high levels of solar gain on the south do help reduce heating energy demand, it is possible that at some times this solar gain may be unwanted. It is recommended to ensure that all south-facing glazing, in particular the upper level windows in the dormers, are outfitted with robust user-operable blinds / shades to ensure against any thermal discomfort. While external shades are preferred, internal shades are a good option as well and can still help with glare and overheating issues.
• The bulkhead addition sees some of the highest levels of solar radiation, and coupled to internal air stack-effects (warmer air rising, cooler air falling) this may lead to thermal comfort and overheating issues at the bulkhead. Ensure that all bulkhead windows and doors, including the skylights, have very robust user-operable blinds for shading and solar control.

• Thanks to the thick tree canopy in the rear yard, the south-facing glazing shows relatively low solar radiation. It is still recommended to ensure that all south facing glazing be outfitted with robust user-operable solar shades.
• The highest summer radiation is apparent on the bulkhead level skylights. These skylights should be outfitted with solar shades to ensure against overheating risk in the upper levels.
• While the bulkhead’s east-facing glazing receives modest solar radiation thanks to the shading from neighboring buildings, due to the low angle of the east sun it is recommended to include user-operable shades/blinds to ensure against discomfort glare, and to help with solar control.
